아슬라 브루잉 컴퍼니 2024.11

ASLA Brewing Company







1. 외향적 공간구성 + 아웃도어 스페이스

아슬라 브루잉 컴퍼니(ASLA Brewing Company) 빌딩은 자연 속 수제 맥주 브루잉(양조) 시설과 시음 라운지, 다양한 야외공간이 함께하는 공간이다.
소나무 숲으로 둘러싸인 초원에 자리한 건물은 외향적 매싱을 통해 적극적으로 외부공간을 연결한다. 세 방향으로 뻗은 매싱 사이 공간을 활용하며, 프로그램 윙들은 외부로 연장되어 자연과 함께하는 외향적 공간들을 제공한다. 또한, 건물 외관을 따라 회전하는 외부 동선은 모든 층을 연결하며 파노라마 자연 전망의 멀티테라스 공간 경험을 제공한다.

2. 세 개의 프로그램 윙
프로그램 윙들 사이 세 곳의 야외공간은 방문객을 맞이하는 진입광장, 브루잉룸/시험실과 연결되는 자재 반입 및 정비 공간, 그리고 식자재 재배를 위한 경작 공간으로 활용되며 이를 따라 자연스럽게 방문객, 관리자의 동선 분리가 이뤄진다. 또한 1층 오피스윙, 시험실윙과 2층 라운지윙은 외부로 프로그램을 연장하며 자연과 함께하는 경험을 극대화한다.

3. 생동감 있는 질감의 외장 마감
건물 외관에 회색 벽돌이 적용되어 인근 산업단지 내 메탈 소재 공장시설들과 색감적 연속성을 갖는 동시에, 자연 대지 위에 정숙하고 무게감 있는 매스를 만들어내며 질감의 특별함을 부여한다.

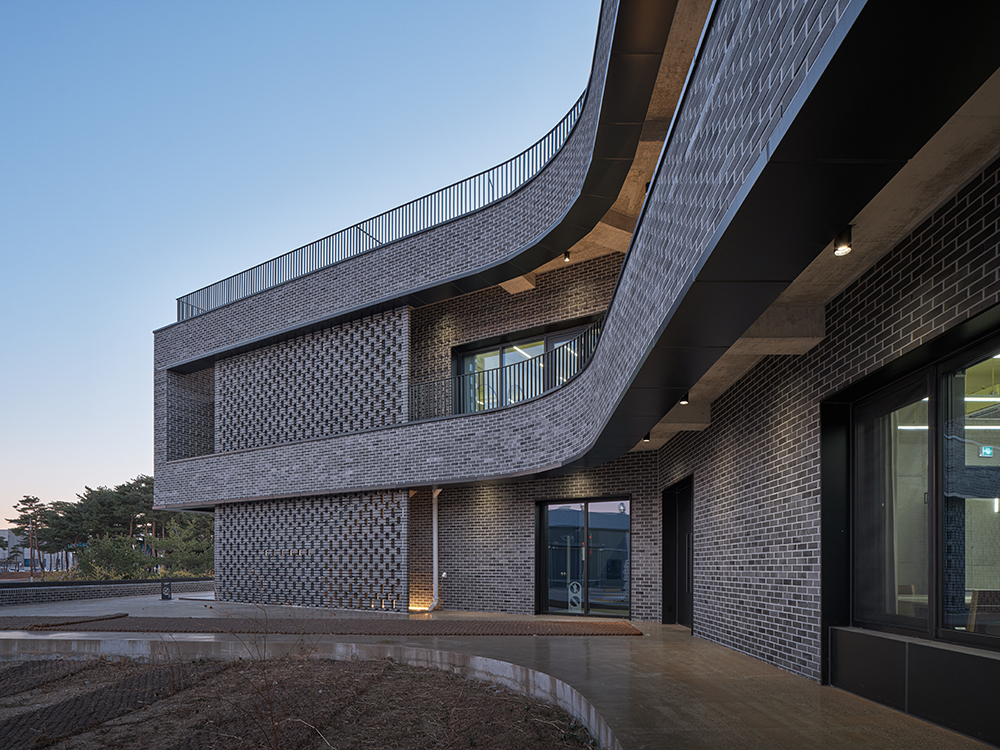

외장 벽돌 마감은 일반쌓기, 영롱쌓기, 비늘쌓기가 영역별로 세심하게 적용되어 공간 특성에 따른 질감, 음영효과와 함께 방문객의 동선을 이끈다. 외부계단의 영롱쌓기벽은 2층 브루어리로 진입하고 옥상 테라스로 올라서는 전이공간 역할을 하며, 수평적으로 적용된 비늘쌓기 외벽 마감은 곡면을 따라 생동감 있는 음영 질감을 만들어내며 테라스 간 동선 연결의 흐름을 유도한다.

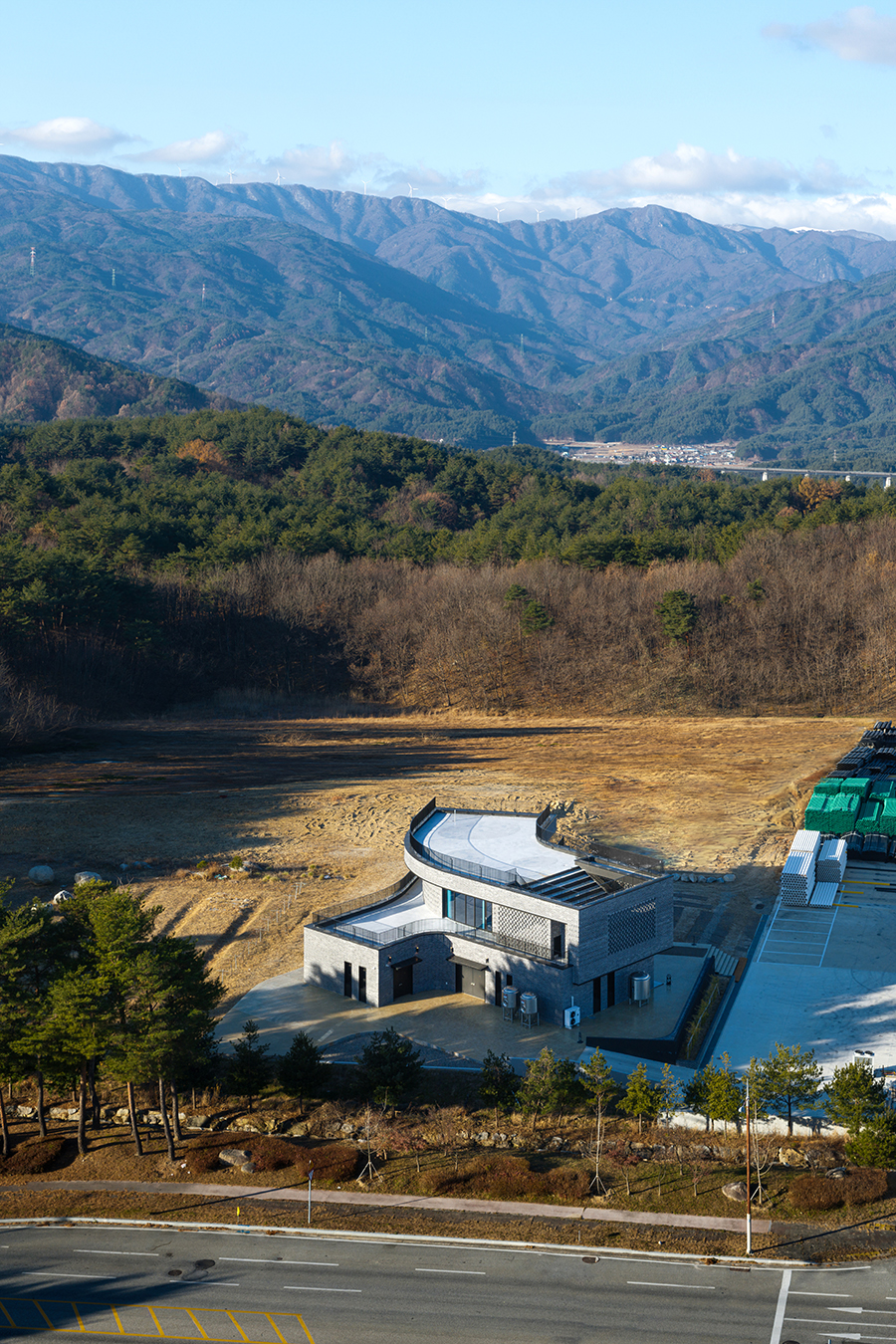

항공 전경

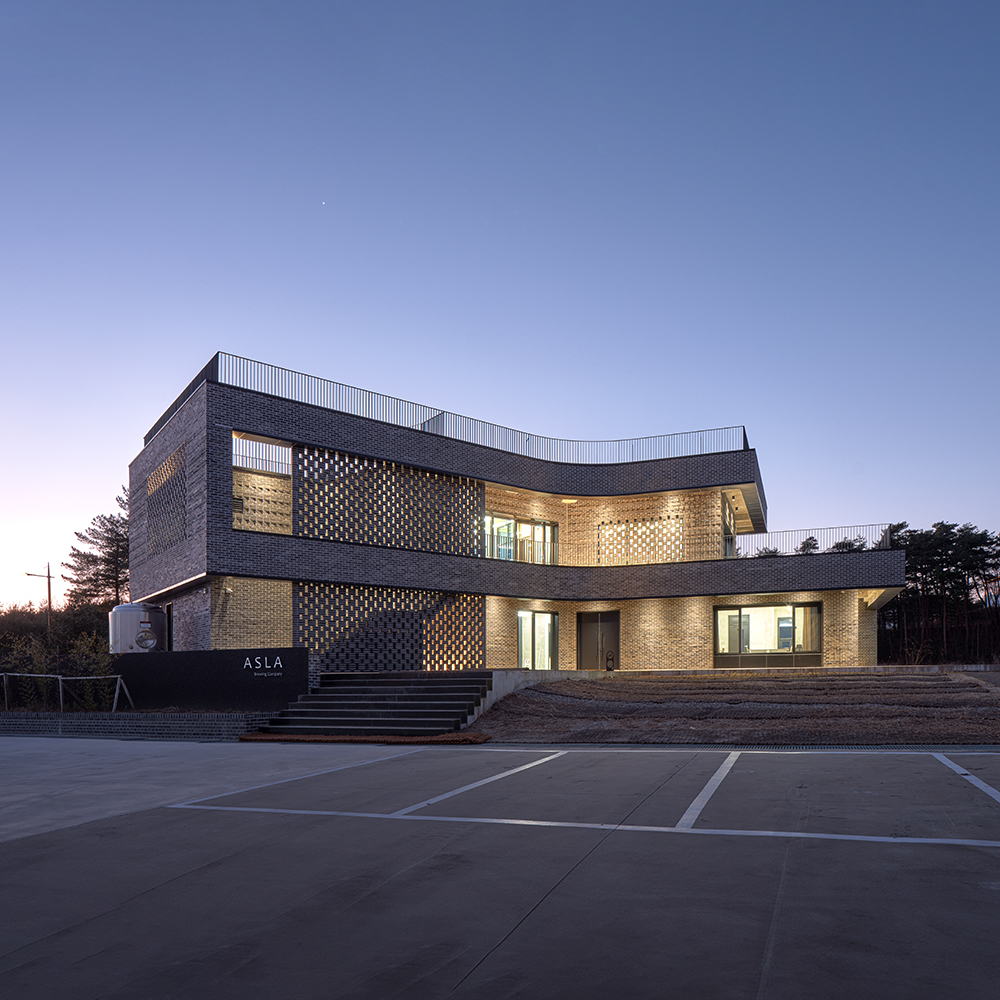

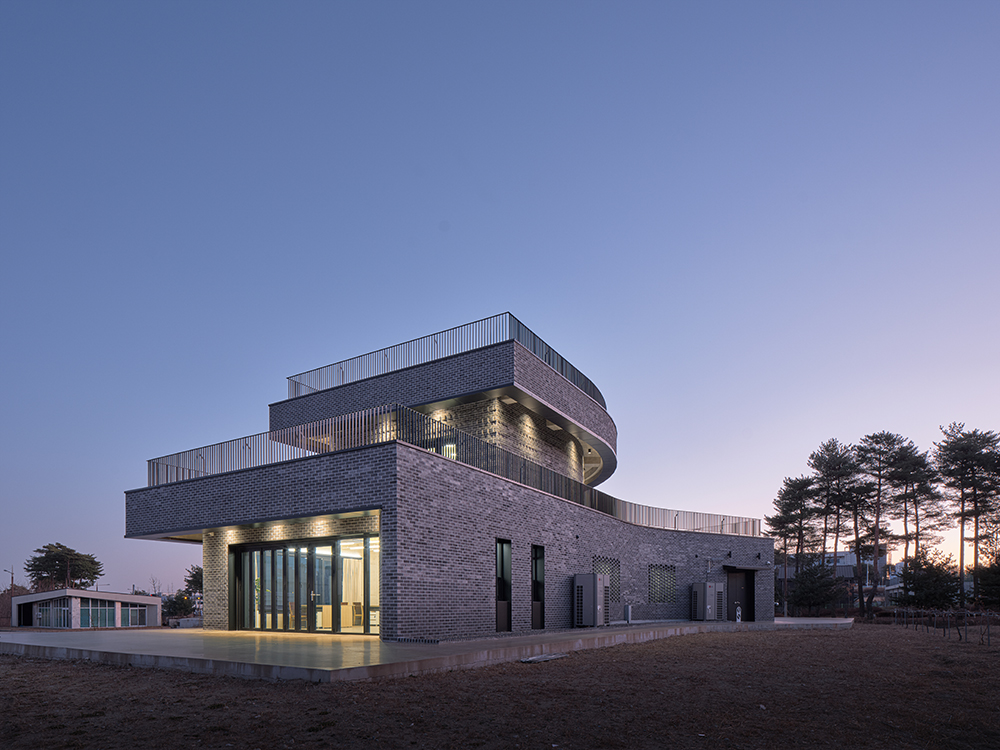

남서측 전경

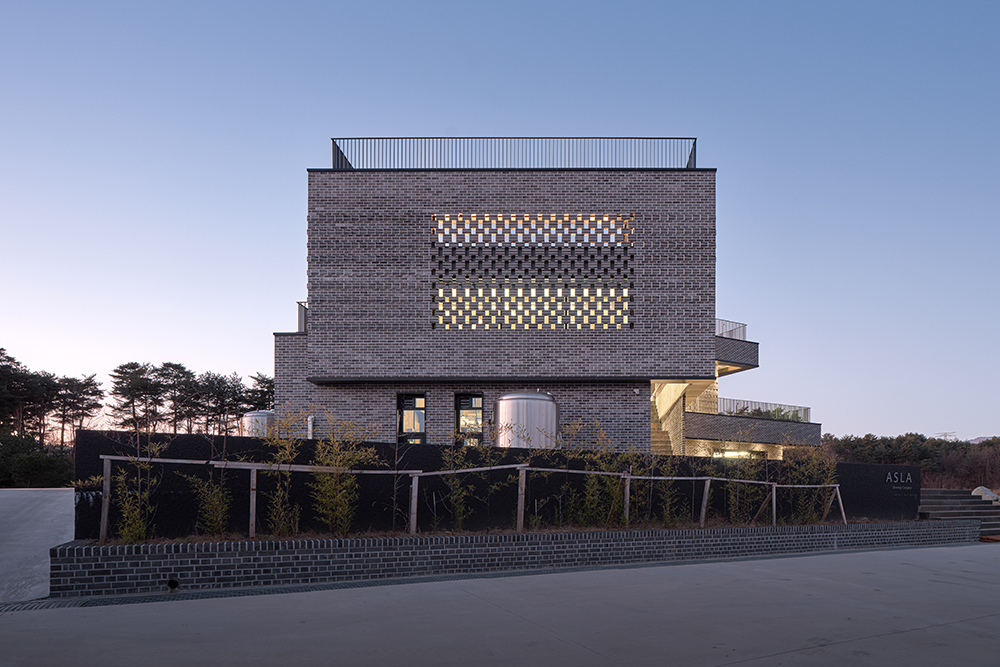

북동측 전경

1층 주진입

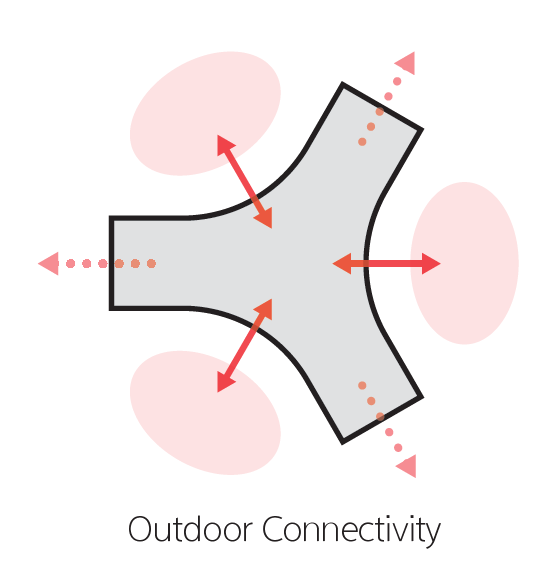

1. Outward Massing + outdoor spaces
The ASLA Brewing Company building is a space with craft beer brewing facilities, a tasting lounge, and various outdoor spaces within nature.
The building, located in a meadow surrounded by a pine forest, creates a strong connection to outdoor spaces through the outward massing shape. Intermediate spaces are created between program wings extended toward three directions, and each program wing extends its interior programs to the outside toward nature. In addition, the external circulation that rotates along the building exterior and connects all floors, provides a multi-terrace experience with a panoramic nature view.

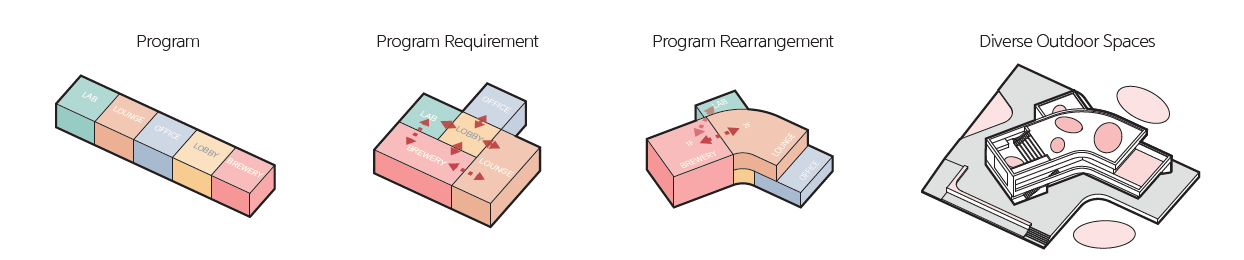

2. Three program wings

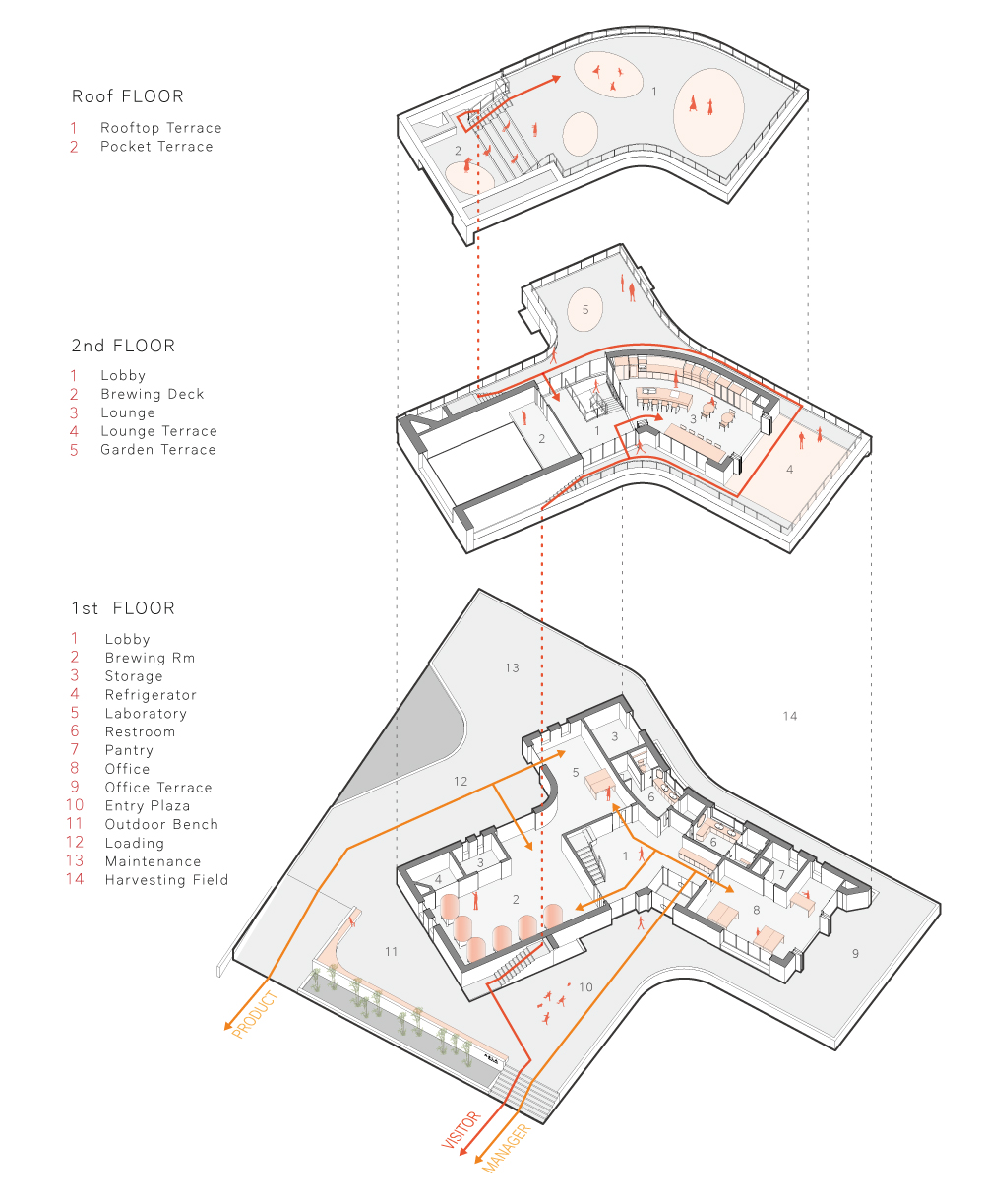

The three outdoor spaces between program wings are utilized as an entry plaza, a loading and maintenance space adjacent to the brewing/lab room, and a cultivation area, thereby naturally separating the circulation paths of visitors and staffs. In addition, an office wing, a lab wing on the first floor, and a lounge wing on the second floor extend their program activities to the outside, maximizing relaxing experiences within nature.

3. Building exterior with vibrant texture
The use of gray bricks on the building exterior not only provides color continuity with metal finishes of factory facilities nearby, but also creates a calm and solid mass on the natural land, creating its own distinctive characteristics.
The exterior brick details such as stretcher bond, hit and miss brickwork, and angular protruding brickwork are strategically applied to each area, leading visitors along with their distinctive texture and shading effects according to the characteristics of the space. The hit and miss brickwork wall on the external stairs serves as a transition space of entering the second floor brewery and going up to the rooftop terrace, while the horizontally applied angular protruding brickwork finish creates a vibrant shading texture along the curved exterior surface promoting the movement along diverse terraces.

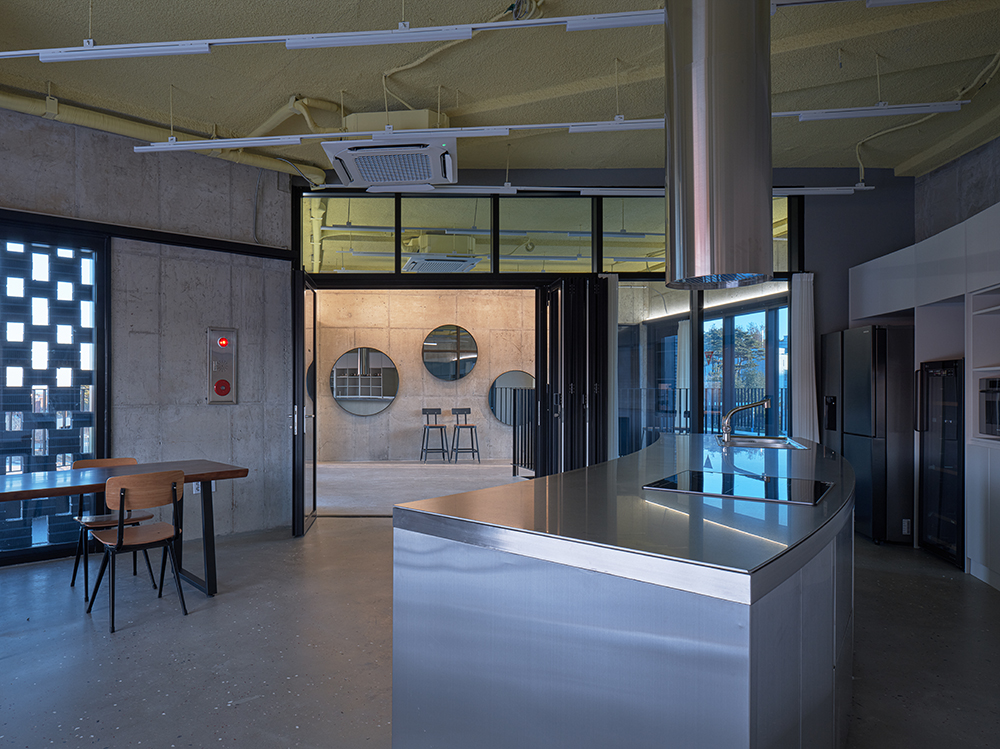

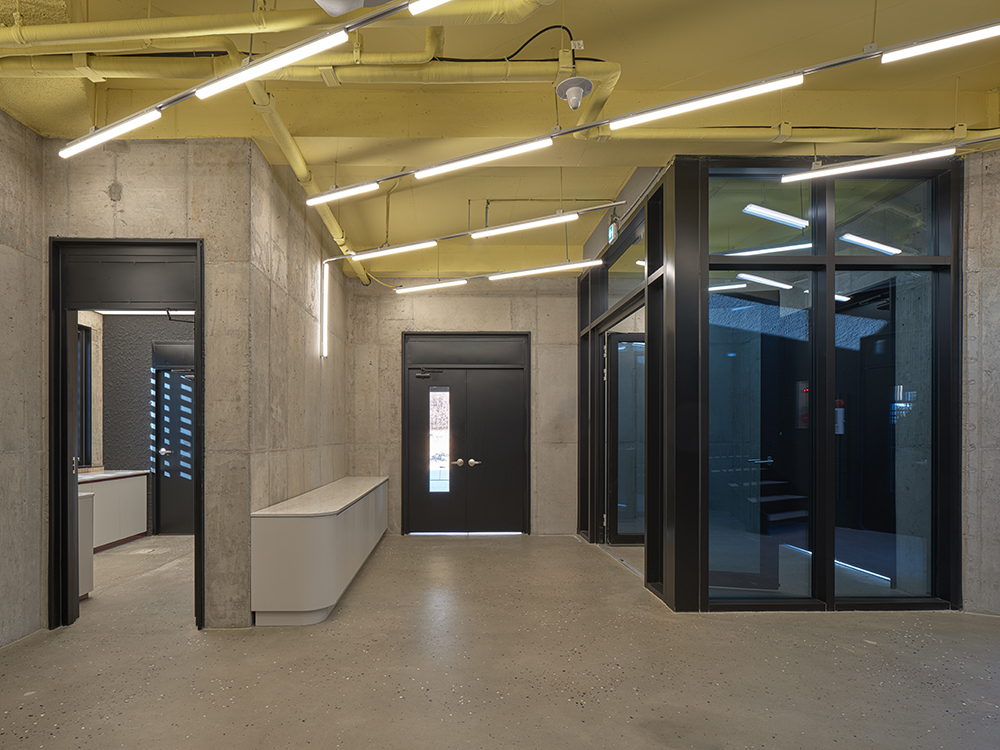

1층 로비

2층 시음 라운지

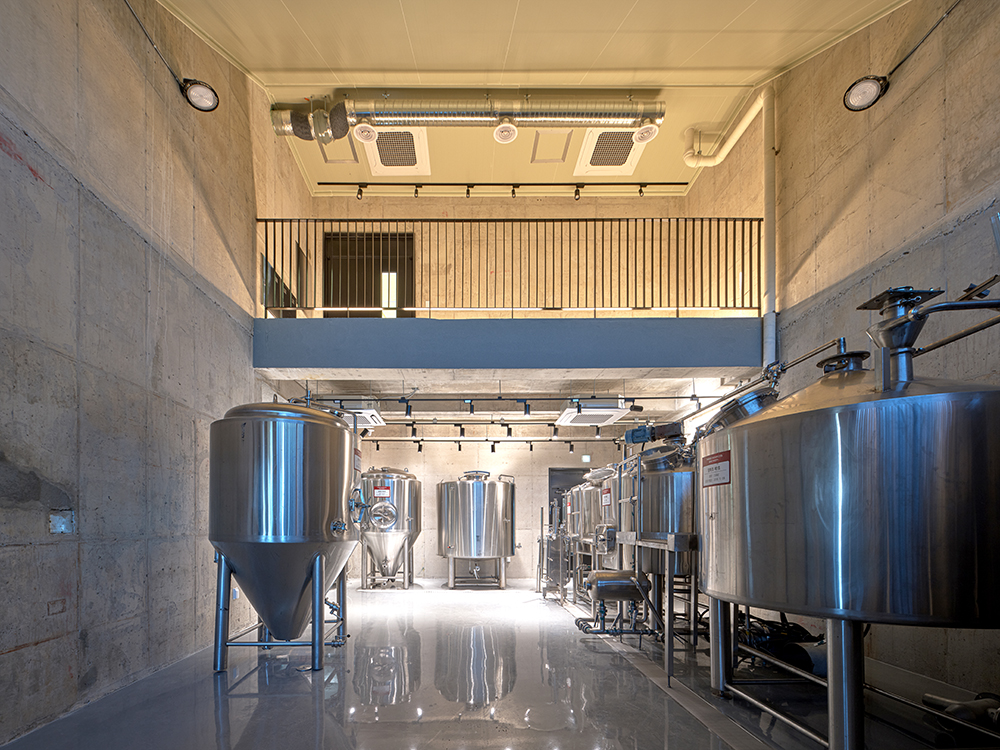

양조실



---



아슬라 브루잉 컴퍼니 설계자 | 김석훈 _ (주)헤이드 건축사사무소  건축주 | 아슬라 브루잉 컴퍼니 감리자 | 최재석 _ 코아 건축사사무소 시공사 | 고금종합건설(주) 설계팀 | 김석훈, 김정희, 김태령, 최희연, 김승기,              코아 건축사사무소, (주)인스타 대지위치 | 강원도 강릉시 사천면 과학단지로 137-15 주요용도 | 제조시설(맥주양조시설) 대지면적 | 26,780.50㎡ 건축면적 | 355.61㎡ 연면적 | 478.80㎡ 건폐율 | 1.33% 용적률 | 1.79% 규모 | 2F 구조 | 철근콘크리트구조 외부마감재 | 벽돌(한국벽돌 제품번호 KKMB-7717 & 7715) 내부마감재 | 노출콘크리트 설계기간 | 2021. 09 – 2022. 06 공사기간 | 2022. 08 – 2023. 08 사진 | 이한울  구조분야 | (주)케이피엔지니어링  기계설비·전기·소방분야 | 대광 엔지니어링  양조시설 | 브루웍스

ASLA Brewing Company Architect | Kim ,Seokhun _ HADE Client | ASLA Brewing Company Supervisor |  Choi, Jaesuk / Core Architect & Engineers Construction | Kokum Engineering & Construction Project team |  Kim, Seokhun / Kim, Jeong Hee / Kim, Tae Ryung / Choi, Heeyeon / Kim, Seung Gi / Core Architect & Engineers / Insta Corp. Location | 137-15 Gwahakdanji-ro, Sacheon-myeon, Gangneung, Gangwon-do, Korea Program | Manufacturing facility(Beer Brewing Facility) Site area | 26,780.50㎡ Building area | 355.61㎡ Gross floor area | 478.80㎡ Building to land ratio | 1.33% Floor area ratio | 1.79% Building scope | 2F Structure | RC Exterior finishing | Brick Interior finishing | Exposed Concrete Design period | Sep. 2021 – Jun. 2022 Construction period | Aug. 2022 – Aug. 2023 Photograph | Lee, Hanul Structural engineer | KP Engineering Mechanical·Electrical·Fire engineer |  Daekwang Engineering Co., Ltd. Brewing Facility | Breworx
